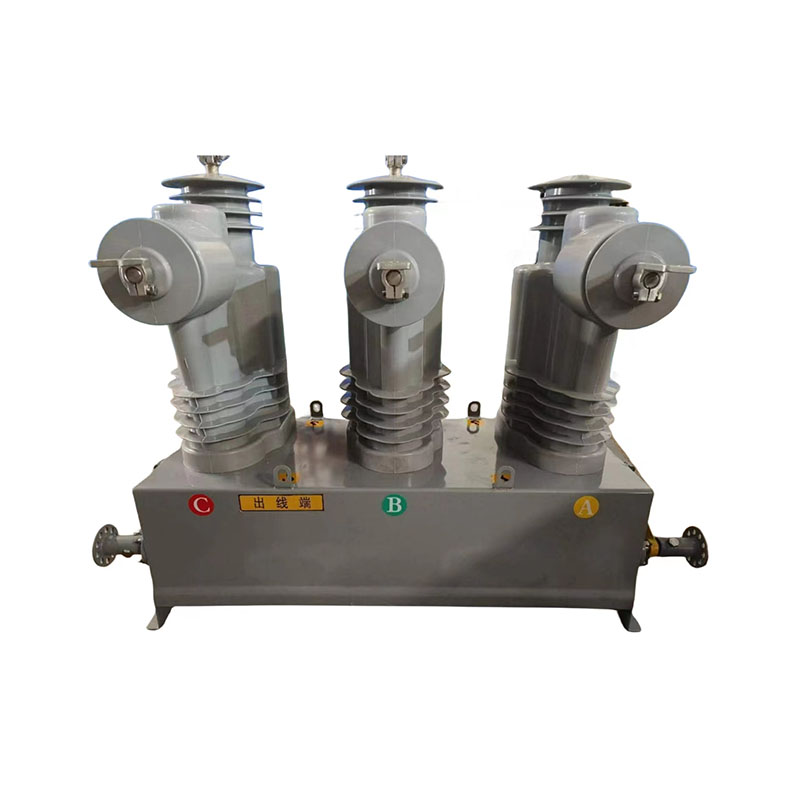

Primary And Secondary Deep Integration Built-In Isolation Type Pole Mounted Circuit Breaker

1. Product structure and design
Integrated design:
The pole-mounted circuit breaker, built-in isolating knife switch and current sensor adopt an integral cast sealed column design, with a modular appearance and a sturdy and stable structure.
The protection conditions of high-voltage components and transmission systems are comprehensively improved, and the sealing performance is excellent.

Main circuit composition:
The main circuit includes: upper outlet, vacuum arc extinguishing chamber, soft connection, plug-in built-in isolating knife switch, plum blossom contact finger and lower outlet.

Built-in isolating knife switch:
It adopts a cylindrical columnar structure, which is realized by integrally casting a sealed column.
All high-voltage primary circuit conductive and transmission insulation components are designed in the inner cavity of the cylinder, and only the lower outlet connector is exposed outside the cylinder.
The silicone umbrella skirt design increases the external creepage distance and provides higher safety.

2. Core functions
Built-in isolation function:
The built-in isolating knife switch adopts a plug-in design, which is easy to operate and highly reliable.
The isolating knife switch and circuit breaker are integrated to reduce external connection points and reduce the failure rate.

Deep integration of primary and secondary equipment:
The primary equipment (circuit breaker, isolating knife switch) and secondary equipment (sensor, controller) are deeply integrated to realize the intelligentization of data acquisition, transmission and control.
Support real-time monitoring and remote operation of distribution automation system.

3. Technical features
Fully sealed design:
All high-voltage conductive and transmission components are sealed in the cylindrical cavity to prevent condensation and external pollution.
The insulation performance is not affected by external climatic factors and can adapt to various harsh environments.

High mechanical strength:
The overall structure is compact and the mechanical strength is excellent, which is suitable for long-term outdoor operation.

Modular appearance:
The appearance is simple and beautiful, and it is easy to install and maintain.

Silicone umbrella skirt design:
Increase the external creepage distance and improve the safety and reliability of the equipment.

4. Application scenarios
Smart distribution network:
Applicable to the intelligent transformation and upgrading of 10kV distribution lines.

Distribution automation system:
Support remote monitoring, fault location and automatic operation to improve the efficiency and reliability of the distribution system.

Outdoor pole installation:
Designed for outdoor environment, adaptable to various climatic conditions, easy to install and maintain.

5. Product advantages
High reliability:
Fully sealed design and built-in isolation function ensure that the equipment can still operate stably in harsh environments.

High degree of intelligence:
Deep integration of primary and secondary design supports real-time data acquisition and remote control to meet the needs of smart grids.

Easy installation and maintenance:
Modular design, compact structure, low installation and maintenance costs.

Strong environmental resistance:
Fully sealed structure and silicone umbrella skirt design, adapt to various harsh climate conditions.
