Primary And Secondary Deep Fusion Circuit Breaker
ZW32-12/T630-20

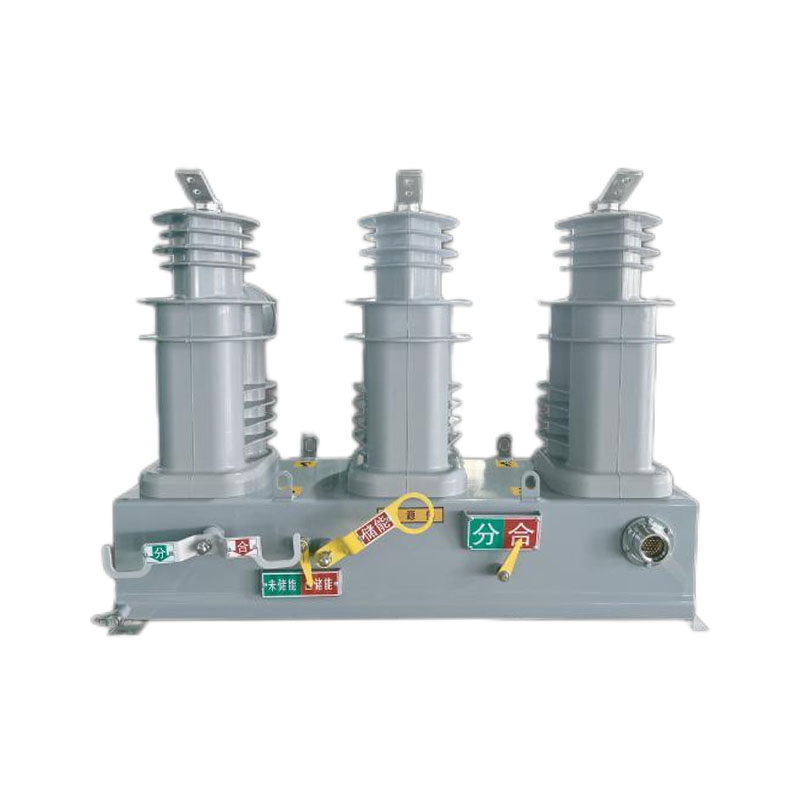

ZW32-12/T630-20 primary and secondary deep fusion vacuum circuit breaker (hereinafter referred to as circuit breaker) is an outdoor power distribution equipment with a rated voltage of 12kV and three-phase AC 50Hz. It is mainly used for breaking and closing load current, overload current and short-circuit current in the power system. The circuit breaker has the characteristics of low power consumption, high accuracy, and integrated functions of measurement, metering, protection, and self-contained power supply.
Key Features
Deep Integration of Primary and Secondary Systems:
Combines high-voltage circuit breaking functions with intelligent control and monitoring capabilities.
Enables real-time data collection, analysis, and remote control.
Intelligent Monitoring and Control:
Equipped with sensors (current, voltage, zero-sequence, etc.) for real-time monitoring of electrical parameters.
Supports remote operation and automation, reducing the need for manual intervention.
High Reliability and Safety:
Built-in isolation and protection mechanisms ensure safe operation under various conditions.
Advanced fault detection and diagnosis capabilities improve system reliability.
Compact and Modular Design:
Integrated design reduces the footprint of the device, making it suitable for space-constrained installations.
Modular components simplify maintenance and upgrades.
Adaptability to Harsh Environments:
Designed to operate reliably in extreme weather conditions (e.g., high humidity, low temperatures).
Sealed construction prevents dust, moisture, and other contaminants from affecting performance.
Energy Efficiency:
Low power consumption design aligns with modern energy-saving requirements.
Optimized performance reduces energy losses during operation.
Components and Structure
Primary Circuit:
Includes components such as the vacuum interrupter, current transformers, and isolation switches.
Handles high-voltage power distribution and fault interruption.
Secondary System:
Comprises sensors, controllers, and communication modules.
Collects and processes data for real-time monitoring and control.
Power Supply:
Dual power supply options (e.g., capacitor power supply and backup battery) ensure uninterrupted operation.
Provides energy for control and switching operations.
Communication Interface:
Supports standard communication protocols (e.g., IEC 61850, Modbus) for integration with smart grid systems.
Enables remote monitoring and control through SCADA systems.
Applications
Smart Grids:
Enhances the automation and intelligence of power distribution networks.
Supports real-time monitoring, fault detection, and self-healing capabilities.
Renewable Energy Systems:
Integrates with solar, wind, and other renewable energy systems for efficient power distribution.
Ensures stable operation in fluctuating power generation conditions.
Industrial Power Distribution:
Provides reliable protection and control for industrial facilities with high power demands.
Reduces downtime and improves operational efficiency.
Urban and Rural Power Networks:
Suitable for both urban and rural power distribution systems.
Improves the reliability and quality of power supply in diverse environments.
Advantages
Enhanced Efficiency:
Intelligent control and monitoring optimize power distribution and reduce energy losses.
Improved Reliability:
Advanced fault detection and isolation mechanisms minimize downtime.
Cost Savings:
Reduced maintenance requirements and longer service life lower operational costs.
Future-Proof Design:
Supports integration with emerging technologies and smart grid systems.
Environmental Adaptability:
Robust construction ensures reliable performance in harsh conditions.
