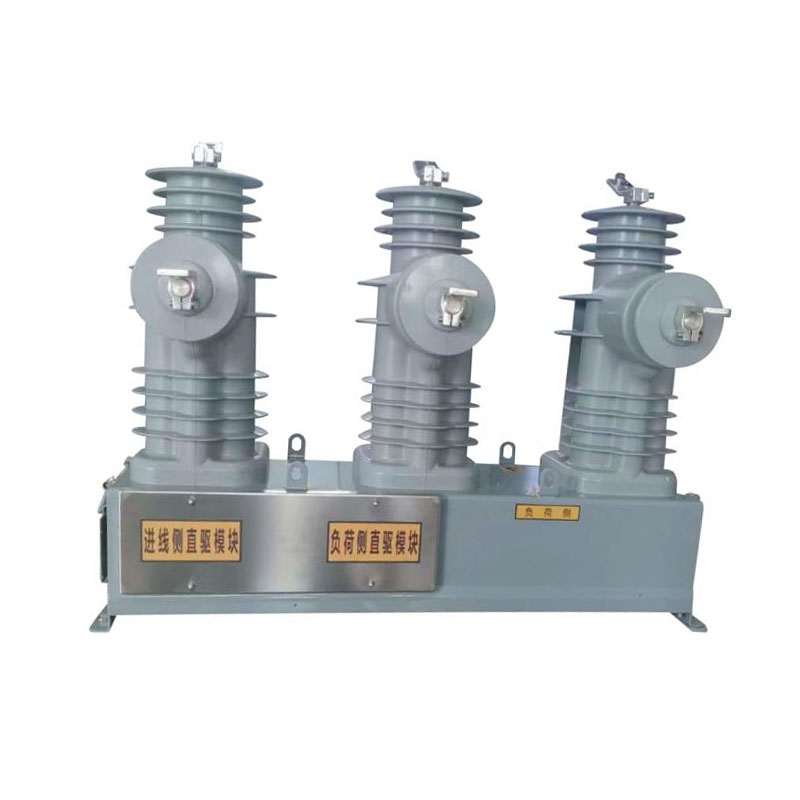

Primary And Secondary Fusion Outdoor High Voltage AC Low Power Consumption Vacuum Circuit Breaker (Direct Power Supply)

1. High voltage tolerance
Features:
Rated primary working voltage: 10kV.
Power frequency withstand voltage: 45kV/1 minute.
Impact voltage: 1.2/50μs 75kV.
Advantages:
It can operate stably in high voltage environment, suitable for high voltage power grid and industrial power system.
It has strong voltage resistance to ensure that the equipment can still work normally under extreme voltage conditions.

2. Low partial discharge
Features:
Partial discharge amount: <10pC (test voltage 14.4kV).

Advantages:
Low partial discharge design reduces energy loss and equipment aging.
Improve the safety and reliability of equipment operation and extend service life.

3. Strong insulation performance
Features:
Primary and secondary isolation voltage: 45kV/1 minute.
Insulation resistance: >1000MΩ.

Advantages:
Excellent insulation performance to ensure safe isolation between high and low voltage.
Prevent leakage and short circuit, and improve the safety and stability of equipment.

4. Wide temperature adaptability
Features:
Operating temperature range: -40℃ to 70℃.

Advantages:
Able to operate stably in extreme temperature environments and adapt to various climatic conditions.
Suitable for outdoor installation without additional temperature control equipment.

5. Low starting voltage
Features:
Starting voltage: 3kV.

Advantages:
Low starting voltage design ensures that the equipment can start quickly even under low voltage conditions.
Improve the response speed and operating efficiency of the equipment.

6. Adaptive output power
Features:
Rated output power: 150W (adaptive).
Output voltage: DC28.8V±20%.

Advantages:
Adaptive output power design can automatically adjust the output according to load requirements.
Improve energy utilization and reduce operating costs.

7. High reliability and stability
Features:
Operating frequency: 50±3Hz.
Low power consumption design.

Advantages:
Stable operation within the standard power frequency range and adapt to grid frequency fluctuations.
Low power consumption design, energy saving and environmental protection, reducing operating costs.
